Kona Libre CR DL

Kona Libre CR DL
  • Color: Gloss Indigo Blue
Please select options
Sorry, this item is currently not available. Please check back.

Details

The cream of the crop, the Libre CR DL leaves no stone…er piece of gravel unturned. This gorgeous Race Light Carbon frame provides both performance and comfort across varying terrain. The Libre CR DL features a Kona Verso Carbon fork and can carry a ton of gear via bento box mounts, 3-pack cage mounts, and numerous water bottle bosses. Bike packing not your thing? That's cool too because this bike hauls ass over gravel, pavement, or whatever you want to throw at it. Engage the dropper post to slay that nasty little section of singletrack. You can be sure the grippy 45c tires will have you covered.

KONA CARBON
Designed to be lightweight and built to demanding standards. Carbon fiber has long been praised for its weight and strength, but rather than chase grams, we place our efforts on the performance that is possible when the right high-modulus fibers are in the right places. Our designers work very closely with our manufacturer to ensure there is no compromise to the desired ride characteristics, durability and – finally – weight stipulations that we expect from our bikes.

INTEGRATED HEADSET
Integrated headsets are simple, light and effective headset systems whereby the bearing race cups are actually part of the head tube, and they are either machined away and left with the head tube, bonded (carbon), or welded in with steel or alloy. Like an internal headset, an integrated headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.

TAPERED HEAD TUBE
More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it's needed.

TUBELESS COMPATIBLE RIMS
Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.

12x142mm AXLE
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted.

Geometry

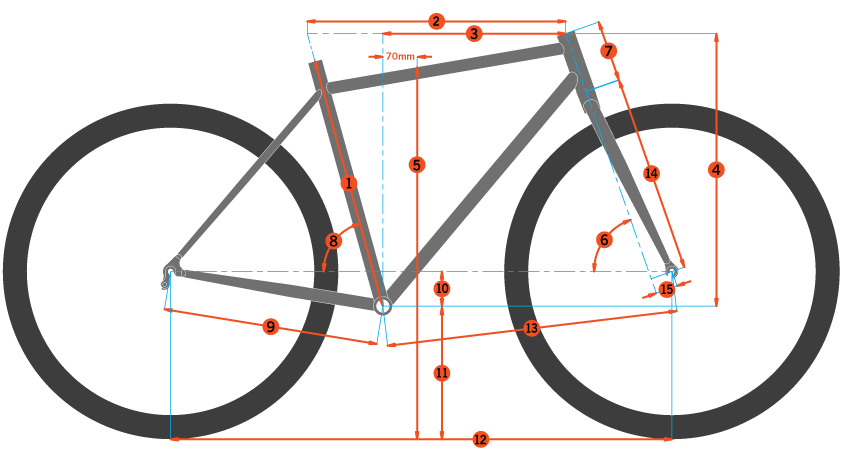

Geometry Chart:
Frame Size5052545658
Seat Tube Length (mm) 455 490 510 540 550
Top Tube Length (mm) 543 558 572 588 608
Reach (mm) 378 383 386 389 394
Stack (mm) 575 590 610 630 660
Standover (mm) 758 782 803 830 850
Head Tube Angle 70.5° 70.5° 71° 71° 71°
Head Tube Length (mm) 137.3 153.2 175.4 196.5 230.4
Seat Tube Angle 74° 73.5° 73° 72.5° 72°
Chainstay Length (mm) 440 440 440 440 440
Bottom Bracket Drop (mm) 75 75 72 72 70
Bottom Bracket Height (mm) 285 285 288 288 290
Wheelbase (mm) 1042 1052 1058 1068 1084
Front Center (mm) 613 623 628 638 654
Fork Length (mm) 410 410 410 410 410
Fork Offset (mm) 50 50 50 50 50
Sizes:
Frame SizeHeight (inches)Height (cm)Inseam (inches)Inseam (cm)
50cm 4'10"-5'1" 147-155cm 24"-27" 61-69cm
50cm 5'0"-5'3" 152-160cm 26"-29" 66-74cm
50-52cm 5'2"-5'7" 157-170cm 27"-30" 69-76cm
52-54cm 5'6"-5'10" 168-178cm 29"-31" 74-79cm
54-56cm 5'9"-6'0" 175-183cm 30"-33" 76-84cm
54-58cm 5'11"-6'2" 180-188cm 32"-35" 81-89cm
58cm 6'1"-6'5" 185-196cm 33"-36" 84-91cm

Specs

Frame Kona Race Light Carbon
Fork Kona Verso Full Carbon Flat Mount Disc
Rims Easton EA 70AX Wheelset
Hubs Front: Easton EA 70AX 100x12mm
Rear: Easton EA 70AX 142x12mm
Spokes Easton EA 70AX Wheelset
Tires WTB Riddler TCS DUAL 700x45c
Bottom Bracket Shimano PF86
Crankset Shimano GRX 600
Chainrings 40t
Shifters Shimano GRX 600 w/Integrated Dropper Lever
Rear Derailleur Shimano GRX 812
Cassette/Freewheel Shimano SLX 11-42t 11spd
Chain Shimano 105
Brakes Shimano GRX 400
Rotors Shimano RT54 160mm (centerlock)
Brake Levers Shimano GRX
Handlebars Easton EA70AX
Tape/Grips Velo Shock-Proof Bar Tape
Stem Easton EA70
Headset FSA No.42ACB
Seatpost TranzX Dropper +RAD Internal 31.6mm
Saddle WTB Volt
Pedals Sold separately

* Subject to change without notice.
