Surly Pack Rat Frameset
  • Color: Get In Green
  • Color: Get In Green
  • Color: Get In Green
  • Color: Get In Green

Surly Pack Rat Frameset


Product Rating
0.0 stars
 (0 Reviews)
Get In Green
Availability: Please select options
  • This item is not permitted to be shipped, however it can be purchased online and picked up at your convenience.

Product Details

2018 Surly Pack Rat Frameset

The Surly Pack Rat is designed around porteur-style racks and front-loading optimization, with a front cargo-specific design to eliminate steering issues. The fork features internal routing for generator hubs and rear frame dropouts to accommodate multiple drivetrain configurations. It’s an ideal choice for loaded commutes and bike trips with a lighter load, but also rides great when unloaded.

- 100% Surly 4130 Chromoly frame, main triangle is double-butted; 1-1/8" threadless brazed Chromoly fork
- Bosses front and rear for cantilever or linear-pull brakes, rack and fender eyelets at the dropouts, eyelets at the crown, and fully threaded through-blade fork eyelets for a front rack
- Semi-horizontal dropouts with a derailleur hanger for geared or singlespeed drivetrains and/or wheelbase adjustability

Features and Information

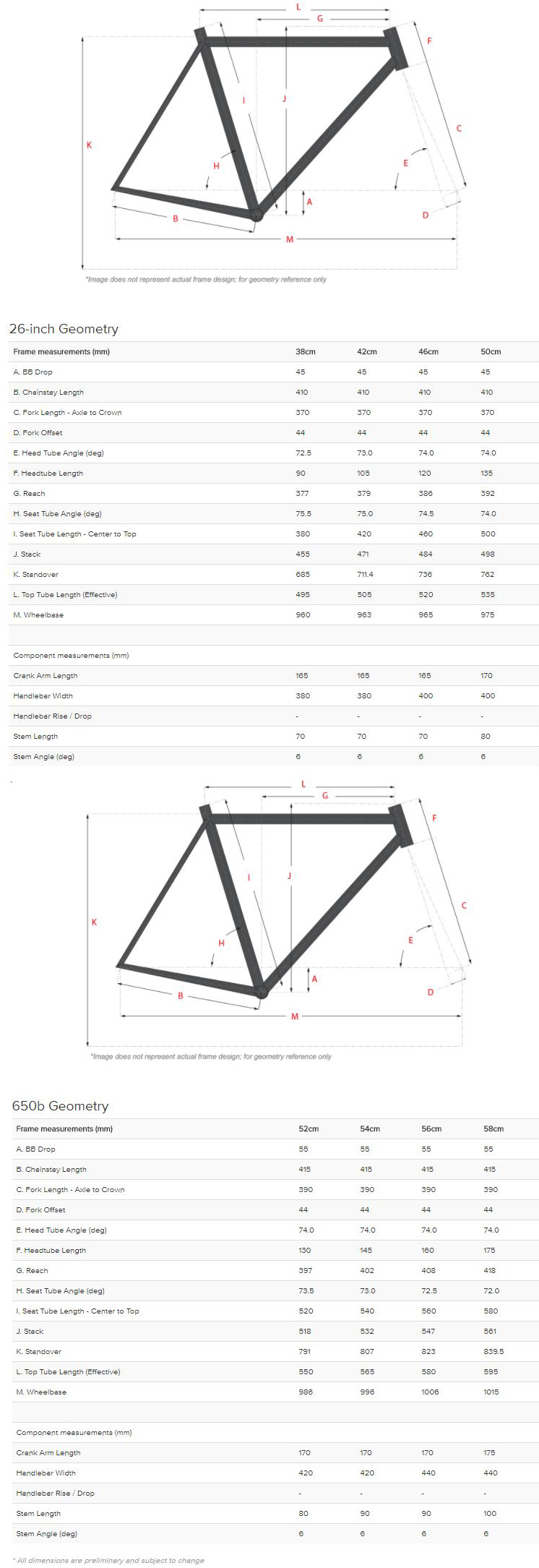

  • Geometry chart
  • Wheel size:
    Sizes 36cm–50cm: 26 x 2.0-inch
    Sizes 52cm–58cm: 650B x 47mm
  • Contact us for parts packages
  • Specifications close open

    Specification Description
    Frame Surly Pack Rat, Surly 4130 CroMoly steel. Main triangle double-butted. TIG-welded. ED coated, Cantilever or linear-pull brake studs
    Fork Surly Pack Rat, 4130 CroMoly, lugged & brazed. Sloping crown w/threaded eyelets, tapered & butted curved blades w/mid-blade rack eyelets, dual dropout eyelets
    Headset 1-1/8" threadless
    Axles Rear: Semi-horizontal Gnot-rite spacing (132.5mm)
    Bottom Bracket English threaded, 68mm wide
    Wheel Compatibility 36cm–50cm: 26-inch
    52cm–58cm: 650B
    Accessories & Extras Surly stainless seatpost clamp, 30.0mm

    * Subject to change without notice.

    Back to top
  • Part Numbers close open

    Option Barcode Manufacturer's Part Number Vendor Number Store SKU
    Get In Green / 38cm / 26-inch 708752155640 FM1491 QBP-FM1490 SUR36985908N
    Get In Green / 42cm / 26-inch 708752155633 FM1492 QBP-FM1491 SUR36106353N
    Get In Green / 46cm / 26-inch 708752155626 FM1493 QBP-FM1492 SUR36574365N
    Get In Green / 50cm / 26-inch 708752155619 FM1494 QBP-FM1493 SUR36578568N
    Get In Green / 52cm / 650B 708752155602 FM1494 QBP-FM1494 SUR38314182N
    Get In Green / 54cm / 650B 708752155596 FM1495 QBP-FM1495 SUR38183085N
    Get In Green / 56cm / 650B 708752155589 FM1496 QBP-FM1496 SUR38187105N
    Get In Green / 58cm / 650B 708752155572 FM1497 QBP-FM1497 SUR38899810N
